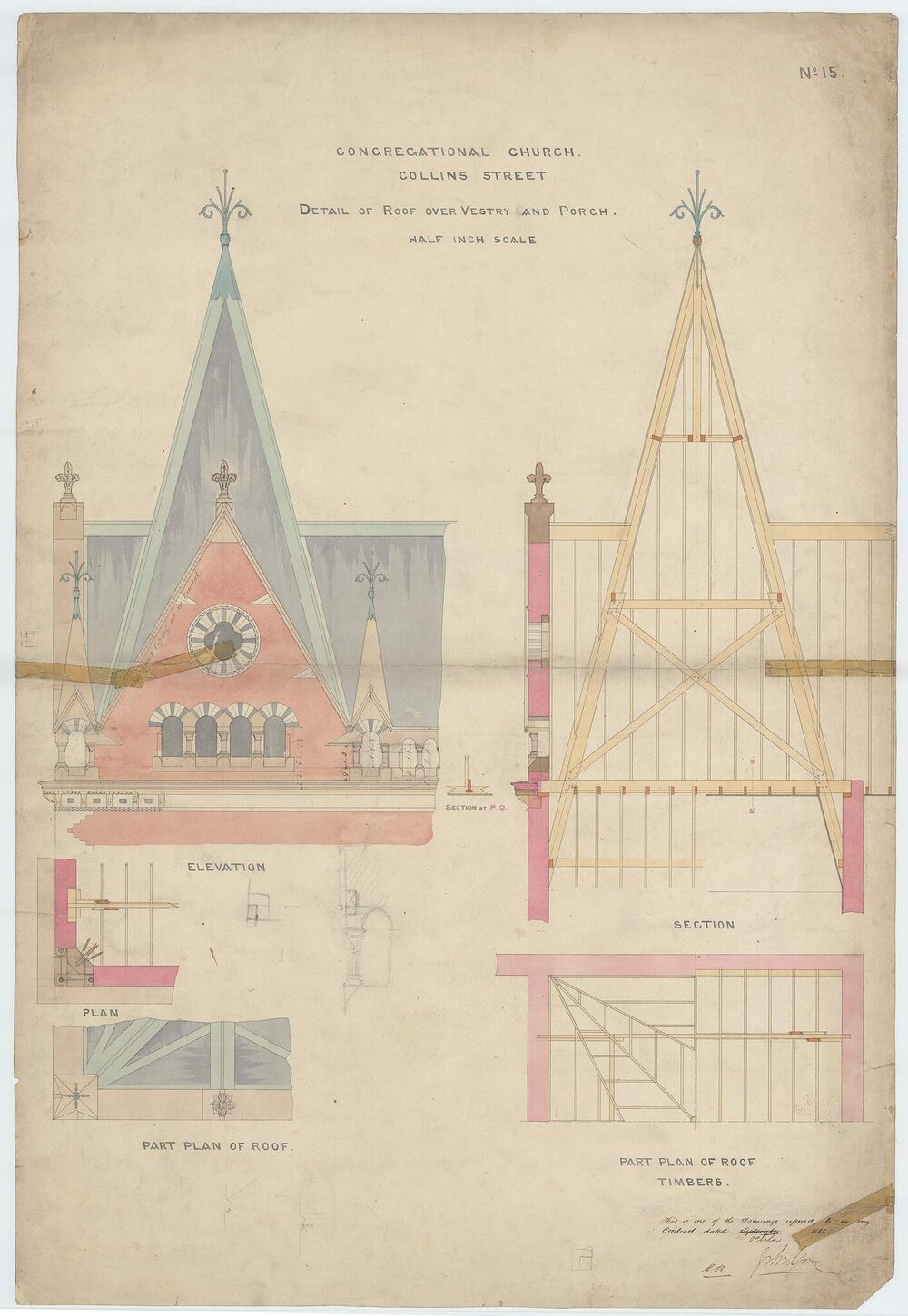

Congregational Church Collins Street - Detail of roof over vestry and porch/ Elevation/ Part plan of roof/ Section/ Part plan of roof timbers [514]

Description

Series[UMA-SR-000001021] Architectural drawings of Bates, Smart and McCutcheon Pty Ltd and predecessorsAccession[1968.0013] Consolidated records of Bates, Smart and McCutcheon Pty LtdAccrued to Accession[1968.0013] Consolidated records of Bates, Smart and McCutcheon Pty LtdPart of ItemCongregational Church Collins StreetIdentifierUMA-ITE-1968001300351Extent1 sheetScope and ContentSigned John Young (sp?) and H.B.Access StatusOpen for public accessRequest TypeRequest itemUnitUMA-SR-000001021 Unit 0092Copyright StatusPublic domainConditions of Use and ReproductionThis image is out of copyright. It is provided for research purposes and must not be reproduced without permission of Bates Smart and acknowledgement of the University of Melbourne Archives. For information about ordering a copy of this image contact the University of Melbourne Archives: archives@archives.unimelb.edu.au.MenuBrowse digitised items | Available online

Provenance

CreatorReed & BarnesRoleArchitect

Provenance

CreatorBates, Smart and McCutcheon Pty LtdRoleProvenance

Dates

DateOctober 1866Date ContextSigned on plan: 'This is one of the drawings referred to in my contract dated October 1866'. September also written and crossed out

Description Control

Previous System ID1968.0013.00351ClassificationUMA Job 24Other IDsIdentifier » UMA-IT-000108623Drawing number » 15Reference image number » 514

Characteristics

Genre/FormDetailsElevationsSectionsArchitectural drawingsProduction TechniqueInk and pencilDimensions96.0 x 65.5 cmColour DepthColourPhysical FacetScale: Half inch

Subjects

Subject (Event)[BSM (UMA) Job 24] Congregational Church [Russell & Collins Street, Melbourne]Subject (Place)St Michael's Uniting Church (Melbourne)
