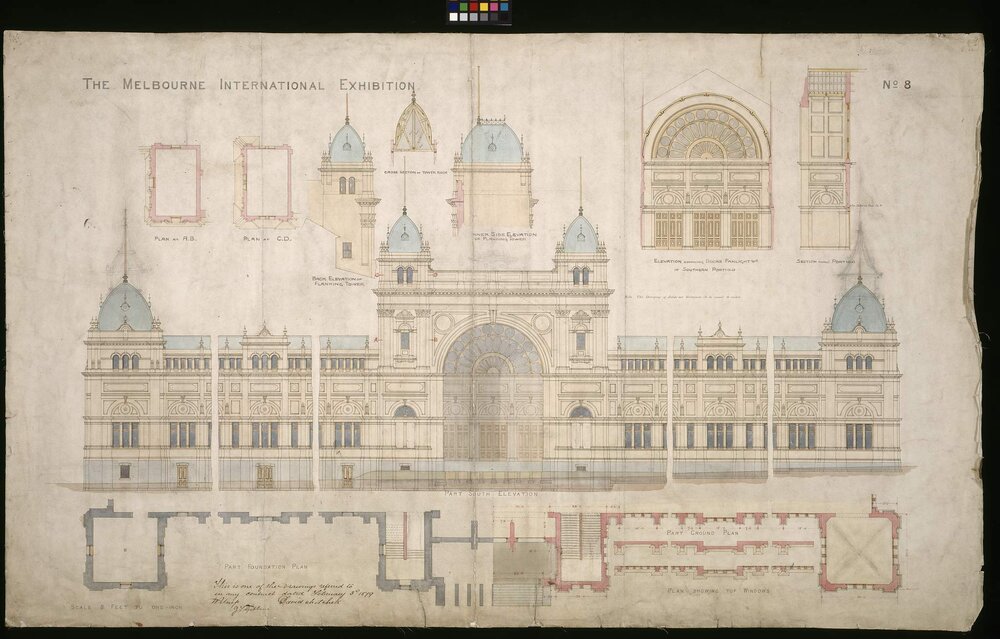

The Melbourne International Exhibition - Part south elevation/ Part foundation plan/ Part ground plan/ Plan showing top windows/ Plan at AB/ Plan at CD/ Back elevation of flanking tower/ Cross-section of tower roof/ Inner side elevation of flanking tower/

Description

Series[UMA-SR-000001021] Architectural drawings of Bates, Smart and McCutcheon Pty Ltd and predecessorsAccession[1968.0013] Consolidated records of Bates, Smart and McCutcheon Pty LtdPart of ItemThe Melbourne International ExhibitionIdentifierUMA-ITE-1968001300135Extent1 sheetAccess StatusOpen for public accessRequest TypeRequest itemUnitUMA-SR-000001021 Unit 0129Copyright StatusPublic domainConditions of Use and ReproductionThis item is out of copyright. Please acknowledge the University of Melbourne Archives as the source of this material. For information about ordering a copy of this image contact the University of Melbourne Archives: archives@archives.unimelb.edu.auMenuBrowse digitised items | Available online

Provenance

CreatorReed & BarnesRoleArchitect

Provenance

CreatorBates, Smart and McCutcheon Pty LtdRoleProvenance

Contributor

ContributorGibbins, J. F.Contributor RoleWitness

Contributor

ContributorMitchell, DavidContributor RoleContractor

Dates

Date3 February 1879Date ContextSigned on plan: 'This is one of the drawings referred to in my contract dated February 3rd 1879'

Description Control

Previous System ID1968.0013.00135ClassificationUMA Job 30Other IDsDrawing number » 8

Characteristics

Genre/FormArchitectural drawingsElevationsFloor plansSectionsProduction TechniqueInk and pencilMaterialPaper mounted on linenDimensions75.0 x 122 cmColour DepthColourPhysical FacetScale: 8 feet to one inch

Subjects

Subject (Event)[BSM (UMA) Job 30] Design and construction of the Royal Exhibition BuildingSubject (Place)Royal Exhibition Building

OCR Text Transcription Edit Edit +-Close

Save Cancel + Row + Column

The Melbourne International Exhibition - Part south elevation/ Part foundation plan/ Part ground plan/ Plan showing top windows/ Plan at AB/ Plan at CD/ Back elevation of flanking tower/ Cross-section of tower roof/ Inner side elevation of flanking tower/
